Premium Rubber Pulley Lagging Solutions
Our pulley lagging rubber is engineered for superior traction, wear resistance, and long-term durability in conveyor and bulk material handling systems.
It helps reduce belt slippage, protect pulleys from wear, and extend conveyor belt service life.
We also offer conveyor belt repair patches, repair strips, impact bars, and lifter bars to support belt maintenance, impact protection, and reduced downtime.
Available in multiple diamond patterns, backing options, and repair formats, our conveyor rubber solutions are built for demanding industrial applications.
Contact Us For Availability
Key Features
- Excellent traction to improve conveyor belt grip
- High abrasion resistance for long service life
- Durable rubber construction designed for heavy-duty applications
- Available with neoprene bonding layer or fabric impression backing
- Multiple diamond surface patterns available for different traction needs
- Available in a range of hardness levels for various applications
- Offered in multiple colors including black, white, orange, and red
- Repair patches and strips available for conveyor belt cuts, gouges, and edge damage
- Impact bars and lifter bars available for conveyor loading zones and material support
Why Use Pulley Lagging Rubber
Pulley lagging rubber plays a critical role in maintaining reliable conveyor system performance.
- Improves pulley traction and reduces belt slippage
- Protects pulleys from abrasion, corrosion, and wear
- Extends the lifespan of conveyor belts and components
- Maintains consistent belt tracking and tension
- Reduces maintenance downtime and operational costs
- Improves overall conveyor system efficiency
Material Availability

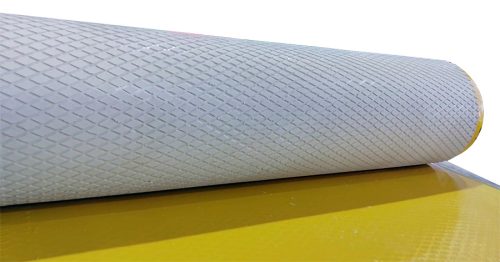

Pulley Lagging Rubber
• Material: High grade natural rubber, food grade options available
• Hardness: 40 Shore A to 70 Shore A
• Thickness: 8 mm to 15 mm
• Typical Widths: 600 mm to 2000 mm
• Length: Custom lengths available
• Temperature Range: -30°C to +70°C
• Surface Designs: Mini diamond, small diamond, and large diamond patterns, ceramic tiles inserts
• Colors: Black, white, orange, and red
• Back Finish Options: Fabric impression or neoprene bonding layer
Repair Strips
• Standard Widths: 50 mm, 75 mm, 100 mm, 150 mm, 200 mm, 220 mm, 300 mm, 400 mm
• Roll Length: 10 m per roll
• Standard Thickness: 3.5 mm
• Strip Types: With fabric or without fabric
• Bonding Layer: Grey bonding layer on one side
Impact Bars and Lifter Bars
• Impact Bar Lengths: 1220 mm, 1500 mm, 1524 mm
• Width: 100 mm
• Height Range: 50 mm to 100 mm
• Top Layer: UHMW-PE
• Core: Energy absorbing rubber
• Hardness: 45 to 60 Shore A
• Fastening System: T-track fastening
• Function: Impact absorption and low friction belt support
Material Safety Data Sheets (MSDS) and material test reports are available upon request.
Request A Quote
"*" indicates required fields
Additional Conveyor Maintenance Products

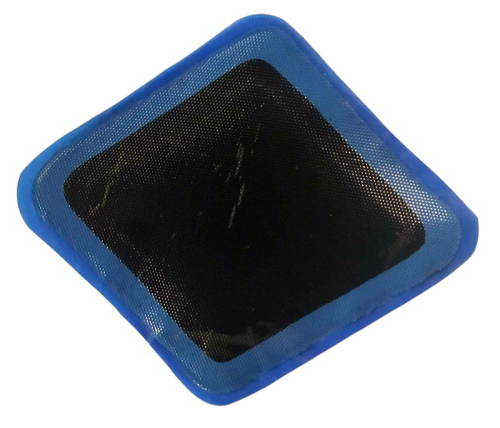

Repair Patches and Repair Strips
Designed for fast, effective repair of conveyor belt damage, including cuts, gouges, punctures, and edge wear. Available as patches or continuous strips with a grey bonding layer for easier installation.

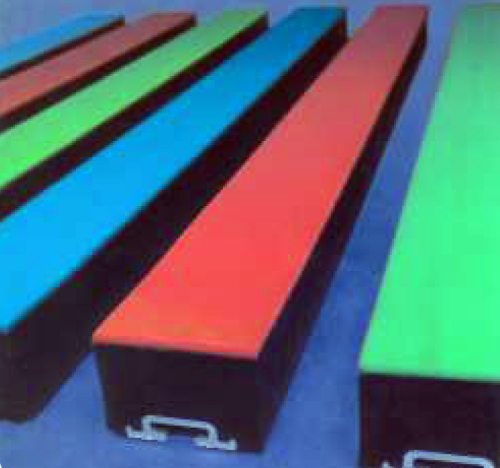

Impact Bars and Lifter Bars
Designed to absorb impact, reduce belt wear, and support material transfer areas. Built with UHMW-PE top layers, energy-absorbing rubber cores, and T-track fastening for heavy-duty conveyor loading zones.
Applications
- Conveyor drive pulleys
- Conveyor tail pulleys
- Conveyor belt repair and maintenance
- Conveyor loading zones and transfer points
- Mining and aggregate conveyor systems
- Bulk material handling operations
- Manufacturing and industrial processing plants
- Ports and shipping terminals
- Agriculture and grain handling systems
- Recycling and waste management facilities
- Food and beverage processing plants
- Power generation and coal handling systems
- Other industrial conveyor system applications
Focused on Partnerships
We support our customers, and prospects throughout the purchase journey. Our team is made up of experienced professionals and highly trained engineers who will help with material selection, sampling, testing, and any application support you might need to accomplish your goals.
